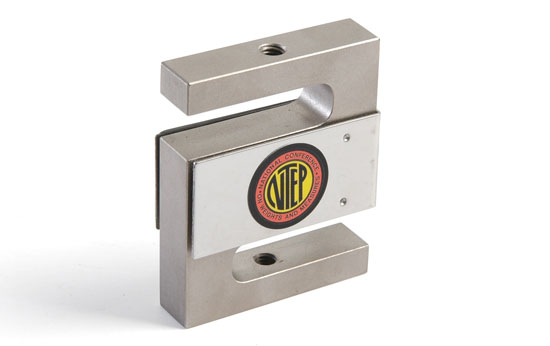

產品名稱： BSA-100lb傳感器 transcell BSA-100lb稱重傳感器
產品品牌：美國傳力/transcell稱重傳感器
產品型號：BSA-50lb,BSA-100lb,BSA-250lb,BSA-25KG,BSA-50KG
產品類型：S型傳感器 S型稱重傳感器
Transcell BSA主要特點
● S型傳感器
● 優質合金鋼材質
● 安裝簡便、快速 ,穩定可靠
● 適用于材料試驗機、配料秤、機電結合秤和包裝秤等
Transcell BSA量程
● 25kg, 50kg, 250lb
Transcell BSA技術參數
●
|
Rated Output
|
額定輸出
|
2.0mV/V ±0.1% / 3.0mV/V ±0.1%
|
|
Zero Balance
|
零點平衡
|
±1% of rated output
|
|
Creep after 30 minutes
|
蠕變
|
±0.03% of rated output
|
|
Nonlinearity
|
非線性
|
±0.03% of rated output
|
|
Hysteresis
|
滯后
|
±0.03% of rated output
|
|
Repeatability
|
重復性
|
±0.03% of rated output
|
|
Temp. effect on output
|
靈敏度溫漂
|
≤0.002% of applied output/oC
|
|
Temp. effect on zero
|
零點溫漂
|
≤0.002% of rated output/oC
|
|
Safe Temp. Range
|
可用溫度范圍
|
-10oC to + 70oC
|
|
Temp. Compensated
|
溫度補償范圍
|
-10oC to + 40oC
|
|
Safe Overload
|
安全載荷
|
150%
|
|
Input Impedance
|
輸入阻抗
|
387 ohm ± 20 ohm
|
|
Output Impedance
|
輸出阻抗
|
350 ohm ± 5 ohm
|
|
Insulation Resistance
|
絕緣阻抗
|
≥5000 M ohm (50V DC)
|
|
Rated Excitation
|
推薦激勵電壓
|
10V DC/AC
|
|
Maximum Excitation
|
最大激勵電壓
|
15V DC/AC
|
|
Cable Length
|
導線長度
|
6m
|
|
Cable Color Code
|
導線顏色
|
Red(+E) Black(-E) Green(+S) White(-S)
|
