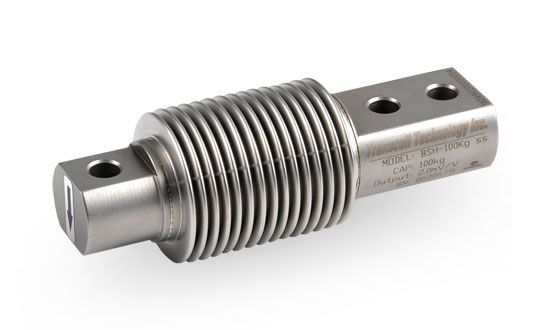

產品名稱： BSH-100kg傳感器 transcell BSH-100kg稱重傳感器
產品品牌：美國傳力/transcell稱重傳感器
產品型號：BSH-50kg,BSH-75kg，BSH-100kg,BSH-150kg,BSH-200kg
產品類型：波紋管 波紋管式稱重傳感器
Transcell BSH 波紋管稱重傳感器
Transcell BSH主要特點
● 懸臂梁式
● 優質不銹鋼材質
● 全密封焊接
● 高精度
● 高穩定性
● 高保護等級
● 安裝簡便、快速
● 可應用于惡劣工業環境
● 適用于灌裝秤、皮帶秤和配料秤等
Transcell BSH量程
● 10kg, 20kg, 30kg, 40kg, 50kg, 75kg, 100kg, 150kg, 200kg, 250kg, 300kg
Transcell BSH技術參數
●
|
Rated Output
|
額定輸出
|
2.0mV/V ±0.1%
|
|
Zero Balance
|
零點平衡
|
±1% of rated output
|
|
Creep after 30 minutes
|
蠕變
|
±0.03% of rated output
|
|
Nonlinearity
|
非線性
|
±0.03% of rated output
|
|
Hysteresis
|
滯后
|
±0.03% of rated output
|
|
Repeatability
|
重復性
|
±0.03% of rated output
|
|
Temp. effect on output
|
靈敏度溫漂
|
≤0.002% of applied output/oC
|
|
Temp. effect on zero
|
零點溫漂
|
≤0.002% of rated output/oC
|
|
Safe Temp. Range
|
可用溫度范圍
|
-10oC to + 70oC
|
|
Temp. Compensated
|
溫度補償范圍
|
-10oC to + 40oC
|
|
Safe Overload
|
安全載荷
|
150%
|
|
Input Impedance
|
輸入阻抗
|
387 ohm ± 20 ohm
|
|
Output Impedance
|
輸出阻抗
|
350 ohm ± 5 ohm
|
|
Insulation Resistance
|
絕緣阻抗
|
≥5000 M ohm (50V DC)
|
|
Rated Excitation
|
推薦激勵電壓
|
10V DC/AC
|
|
Maximum Excitation
|
最大激勵電壓
|
15V DC/AC
|
|
Cable Length
|
導線長度
|
3m
|
|
Cable Color Code
|
導線顏色
|
Red(+E) Black(-E) Green(+S) White(-S)
|
|
